Maintained Box Exit Body Only

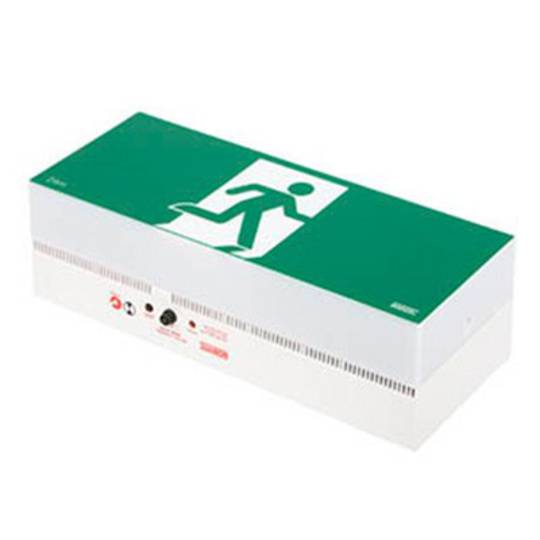

BARDIC PREMIUM 3W LED Maintained Box Exit Body Only SLA

BARDIC PREMIUM 3W LED Maintained Box Exit Body Only SLA
larger imageMove mouse over the image to magnify
The BARDIC Standard range of exit lights is modular and completely user friendly for the specified user alike. Regardless of the diffuser type or configuration, the body remains the same. Compatible with WINET Central Monitoring and Sentinel Automatic Self Testing Systems.
Enquire

"Good value good all round ".

Requires Exit Diffuser Sold Separately
Ceiling Diffuser DTX/C
Wall Diffuser     DRX/W


Features :



•  New LED Technology for excellent uniformity & illumination

•  High efficiency with low power consumption of 3W

•  LED operation > 50,000 hours

•  Versatile installation – Ceiling or Wall Mounted

•  Snap-fit diffuser design

•  Over 2 hours of emergency lighting

•  Robust Sealed Lead Acid

•  Glass-filled polycarbonate body with high UV stability and flammability rating of V-0

•  Internal switch link to permit the connection of an external switch to control the mains operated light source without affecting the emergency operation

•  Designed and tested in accordance with AS2293

Quick Specs






Input

Operating Voltage 240V
Frequency 50Hz





Output

Light Source 6 x 0.5W Everlight LEDs
Function Maintained
Power Consumption 3W





Battery

Type Sealed Lead Acid
Charger Single Rate Constant Voltage
Protection Overcharge & Low Voltage Disconnect
Autonomy Duration 2 Hours Minimum





Physical

IP Classification IP21
Weight 3.0kg
Length 385mm
Width 255mm
Height 100mm
  Construction Glass-filled ABS





Environment

Temperature 0°C - 40°C
Relative Humidity 0 - 95%





Conformance

Standards AS / NZS2293, AS60598.2.22, EMC





Intelligence

Sentinel Compatibility Yes
WINET Compatibility Yes




MLEDS + DRX Diffuser

SPACING TABLE

MOUNTING HEIGHT

NATA Classification

2.1

2.4

2.7

3.0*

C0 - D8 9.4 9.7 9.9 10.1
C90 - D5 7.8 8.0 8.1 8.2

*Maximum mounting height allowed is 2.7m but for exceptions see AS2293.1:2005

MLEDS + DTX Diffuser

SPACING TABLE

MOUNTING HEIGHT

NATA Classification

2.1

2.4

2.7

3.0*

C0 - D10 10.2 10.6 10.9 11.1
C90 - D8 9.4 9.7 9.9 10.1

*Maximum mounting height allowed is 2.7m but for exceptions see AS2293.1:2005



MLEDS + D50A Diffuser

SPACING TABLE

MOUNTING HEIGHT

NATA Classification

2.1

2.4

2.7

3.0

C0 - D32 15.4 16.1 16.7 17.2
C90 - D20 13.1 13.6 14.4 14.5
